Single Panel Machine

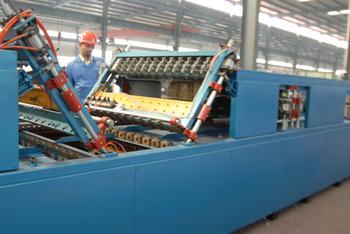

    Product Name: Single Panel Machine
    Model: ZH-1200D Series
    Single Panel Machine is newly designed based on ZH-1200B type 3D panel machine.
    It adopt PLC controlling system, touch screen operation surface, which can insert, cut, and locate the wire mesh and the EPS board automatically and accurately to complete the production of the 3D panel. It adopts PLC Controlling System, Touch Screen Operation Surface device.


Wire Mesh Structure 50mmX50mm
Welded Mesh Wire Diameter 2.5-3.0mm
Inserting Wire Diameter 2.5-3.0mm
Thickness of EPS core 100mm-250mm
Structure of Inserting Wire sparse, dense inserting
single, double sides mesh
Distance between EPS Core and Mesh 10mm
Length 3000mm-6000mm
Width 1220mm
